Featured

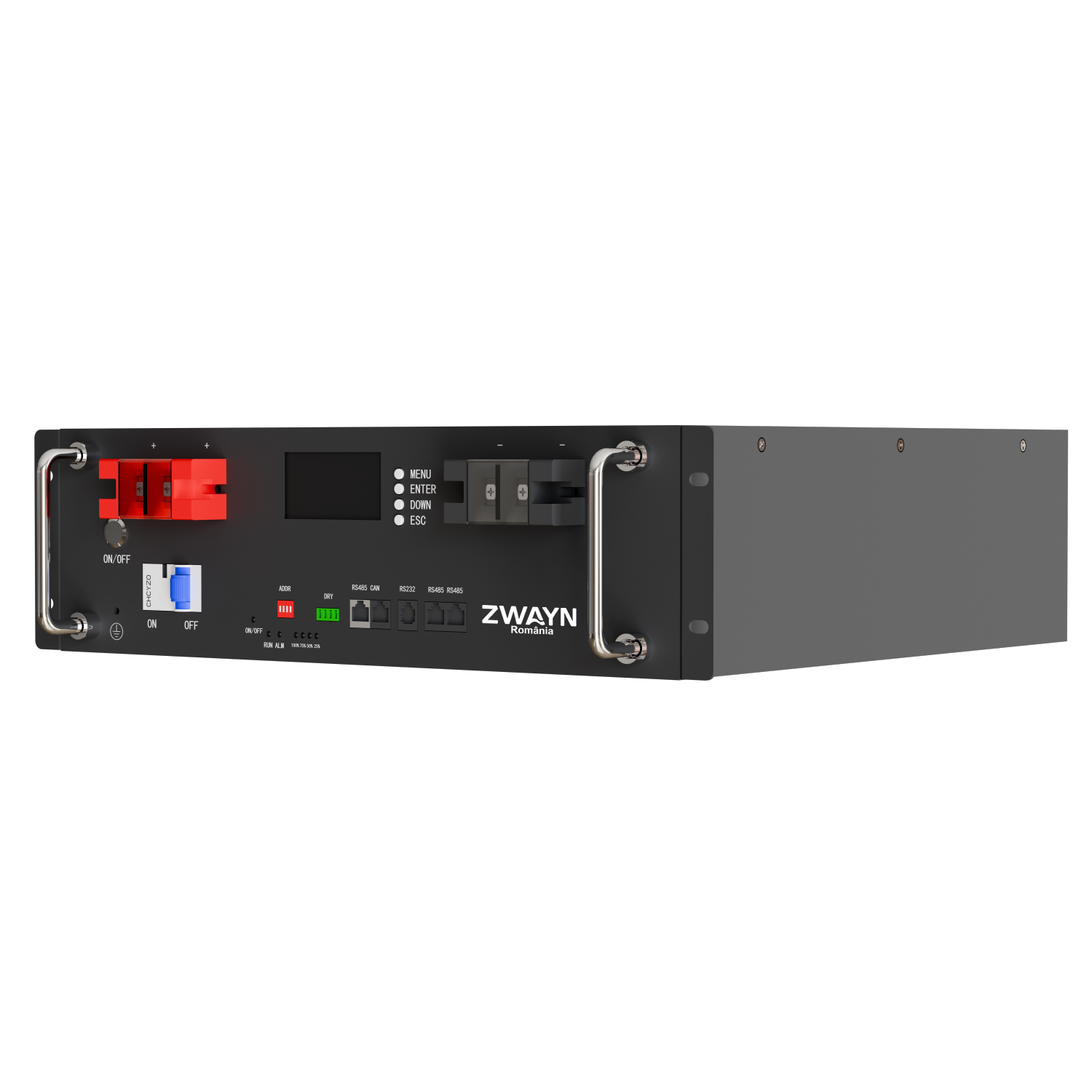

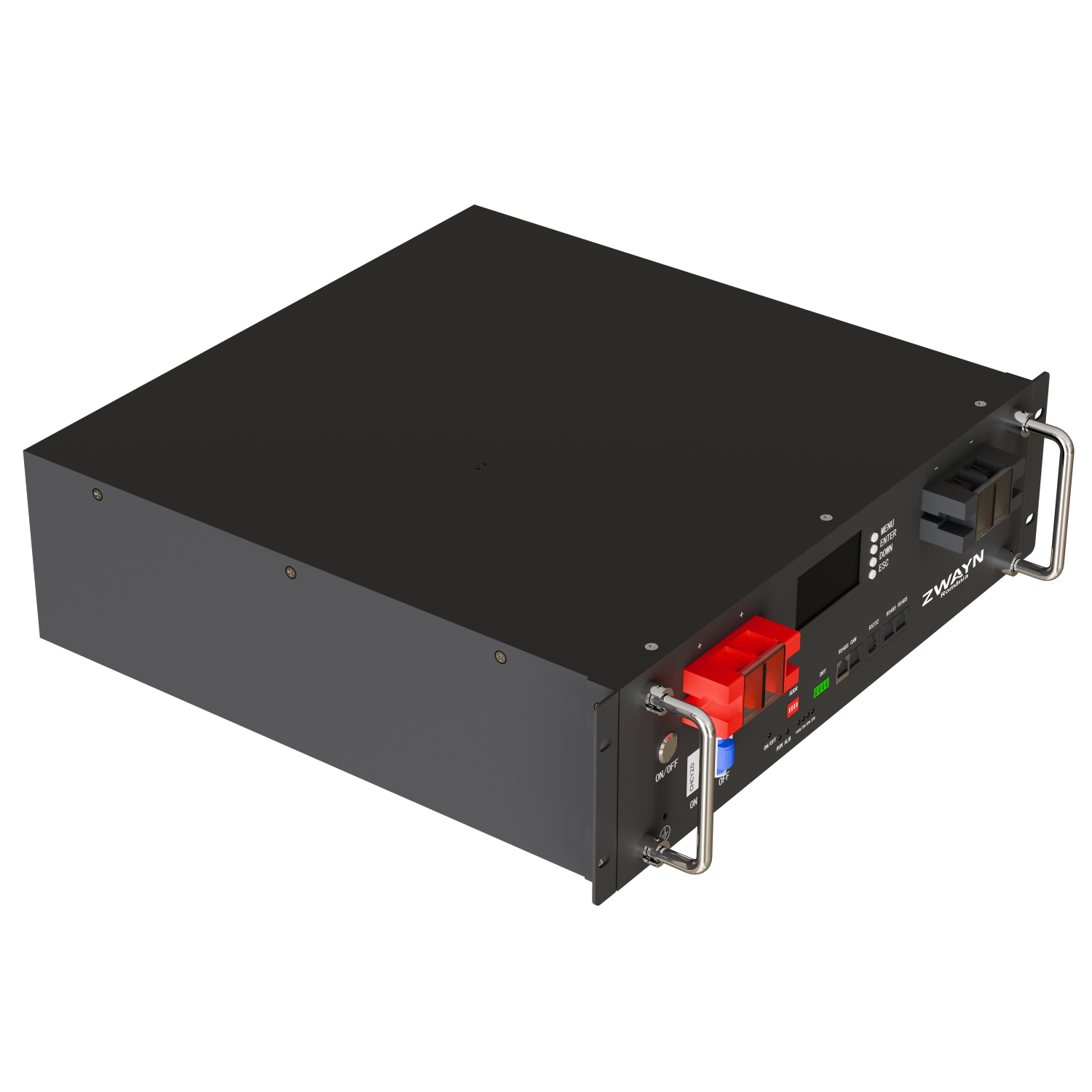

51.2V 100AH 5kWh Rack mount battery
Safe & stable:
1. Built in BMS with multiple protections;
2. Real time monitoring of data through communication function.
Flexible & convenient:
1. Simple design and fast debugging speed;
2. Support multiple installation schemes, easy to install.
3.Compatible with multi-brand inverters.
4.Stackable and flexible deployment.
Smart operation & management:
1.Remote O&M to improve operational efficiency;
2.Remote diagnosis OTA upgrade.
High performance:
1. High consistency. Low internal resistance ensures good consistency in battery discharge;
2. High capacity. Rate charge and discharge.
Description
Product Description
| Nominal Energy | |||
| 5KW | |||
| Nominal Voltage | 51.2V | ||
| Nominal Capacity | 100Ah | ||
| Cell Type | LFP | ||
| Standard Charge Voltage | 58.4V | ||
| Max Charge Current | 100A | ||
| Discharge Cut-Off Voltage | 40V | ||
| Max Discharge Current | 100A | ||
| Parallel Function | Support 16 Units In Parallel | ||
| Communication Interface | Inverter: RS485、 CAN;BMS Monitoring: RS232; Prallels Com.: RS485*2 | ||
| Calendar Life | 15+ Years @25C 80%DOD | ||
| Cycle Life * | ≥6000 Cycles (80%DOD) | ||
| Charge temperature range | 0~65°C | ||
| Discharge temperature range | -20~65°C | ||
| Certification | Cell: UL1642 / IEC62619 / CE / ROHS / MSDS /UN38.3 Pack: MSDS / UN38.3 |
||
| Dimensions | 440*440*145mm | ||
| Weight | 48Kg | ||
| Installation method | Rack-mounted / Floor Standing with Bracket | ||
| *Test Condition: 80% DOD,0.2C charge & discharge @25C | |||
